Name: Flush Mount 10A PWM Solar Charge Controller (Negative Ground)
SKU: P2410C
Availability: InStock

Front view of P2410C flush mount solar regulator featuring LCD display and USB output port.

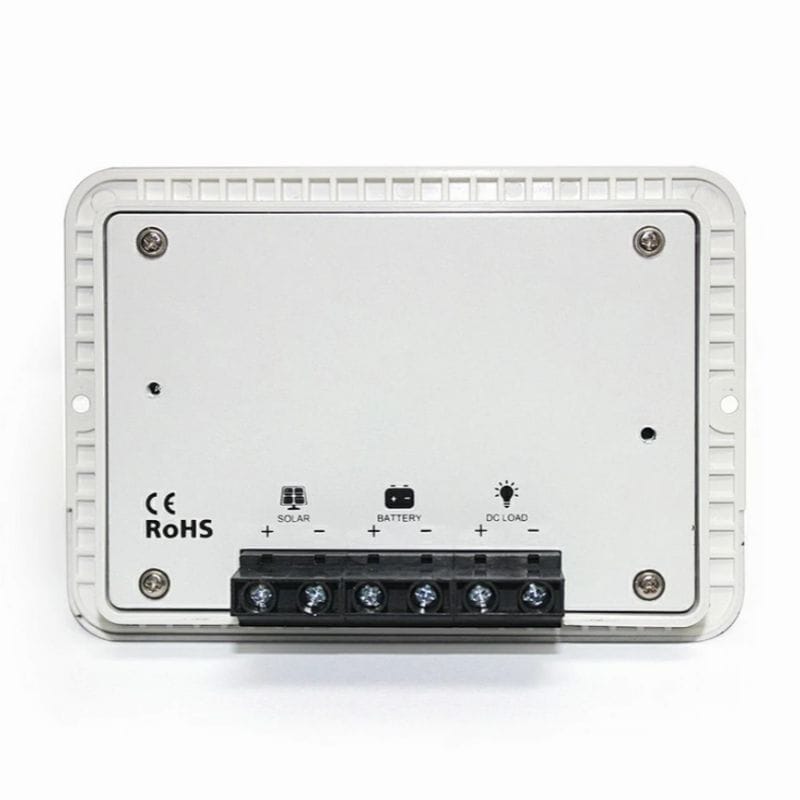

Wiring interface for P2410C negative ground controller showing battery, PV, and load terminals.

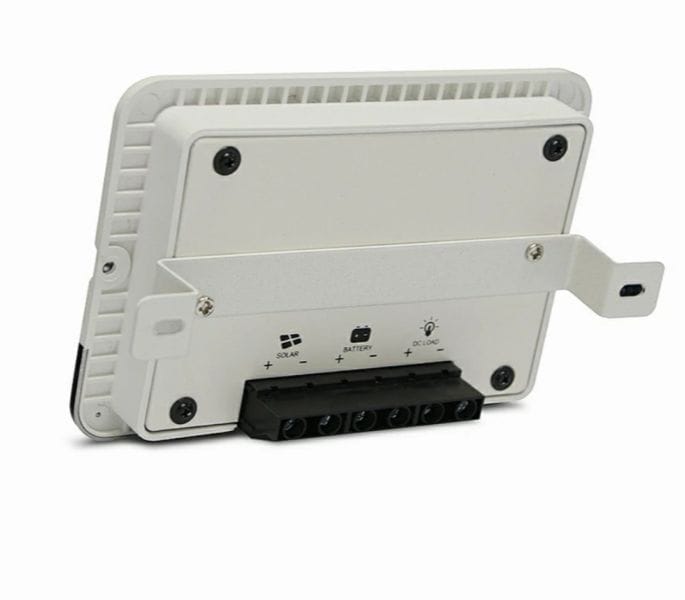

Wiring interface for 10a negative ground controller showing battery, PV, and load terminals.

Package contents for P2410C flush mount solar controller, including surface mounting bracket and user manual.

LCD display interface of 10A PWM solar regulator showing real-time voltage for 12V system applications.

Flush Mount 10A PWM Solar Charge Controller (P2410C)

Designed for Safe & Clean Integration

Flush Mount Profile: Sits flat inside the wall/panel. Prevents accidental bumps in tight RV corridors.
Common Negative Grounding: Crucial for RV Safety. Matches standard RV chassis grounding to prevent short circuits.
Lithium Ready: Pre-programmed for LiFePO4, AGM, GEL, and Flooded batteries.
Dual Installation: Includes bracket for both Embedded (Flush) and Surface (Wall) mounting.

⚠️ ENGINEERING ALERT: Why Choose Negative Ground?

Most RVs and vehicles in North America/Europe use a Common Negative Ground system (the chassis is the negative pole).
Using a cheap “Positive Ground” controller can cause dangerous short circuits and damage your electrical system.
The P2410C controller is strictly engineered with Common Negative Grounding to ensure 100% compatibility and safety for your vehicle integration.

Key Features

The "Invisible" OEM Install

Manufacturers love this design. The Flush Mount capability allows the controller to integrate seamlessly into system cabinets or RV control panels. It looks like a factory-installed part, not an afterthought. We provide precise Cutout Templates for your production line.

Smart Energy Management

Beyond charging, the P2410C acts as a smart timer for your DC loads.
Dusk-to-Dawn Mode: Automatically turns on security lights at night.
Timer Control: Perfect for scheduling ventilation fans or pumps.
Manual Mode: Standard continuous power output.

Robust Industrial Design

Built to withstand the vibration of the road. Features IP32 protection and an optimized PCBA layout for superior passive cooling—no noisy fans required.

Wide Applications

Designed for seamless integration, the P2410C features a dual-mount system. Its flush mount capability allows for a clean, factory-finish installation directly into RV control panels or industrial system cabinets, saving valuable space. Alternatively, use the included back bracket for a standard surface mount on any flat wall. With negative grounding and Lithium compatibility, it provides a safe and professional power solution for caravans, campers, and portable solar generators.

Techniche Specifications

Category	Specification
Model	P2410C (Flush Mount)
System Voltage	12V / 24V Auto Recognition
Rated Current	10A
Max PV Input Power	170W (12V) / 340W (24V)
Max PV Voltage	< 55V
Battery Support	Lithium, Sealed(AGM), Gel, Flooded
Grounding	Negative Grounded (Common Negative)
USB Output	5V / 1A (Standard)
Mounting Type	Flush Mount (Embedded) / Surface Mount
Dimensions	130 x 90 x 34.5 mm
Net Weight	0.2 kg

Recommended System Pairing

Build the Ultimate Aerodynamic RV Power System

Best Match: 100W Flexible Solar Panel

Why? Both the P2410C Controller and our Flexible Panels are designed for Low Profile installation.
The panel glues flat to the roof, and the controller mounts flat in the wall. Result: Less drag, less noise, professional look.

Technical Documents

FAQ (Frequently Asked Questions)

Q1: Can I use this controller for a generic DIY project?

A: Yes, the package includes an extra Surface Mounting Bracket, so you can hang it on any wall just like a standard controller.

Q2: Is the "Negative Ground" feature mandatory?

A: If you are installing this in a vehicle (RV, Camper, Boat) where the chassis is grounded to the battery negative, YES, you must use a Negative Ground controller like the P2410C to avoid electrical hazards.

Q3: Does it support Lithium battery wake-up?

A: Yes, the P2410C is fully compatible with Lithium batteries and supports standard charging profiles.

Q4: Does the controller have a built-in battery? (Shipping Information)

A: No. The controller contains no internal battery. It relies entirely on the external 12V/24V battery bank for operation (you must connect an external battery to wake up the screen). Shipping Note: Since it contains no lithium cells, it is classified as General Cargo (Non-Hazardous). This ensures lower shipping costs and faster customs clearance without the need for UN38.3 or DG certification.

Get Bulk Pricing for P2410C or Flexible solar Chargers

Direct Factory Offer for RV Manufacturers & Distributors. MOQ 50 Units.
