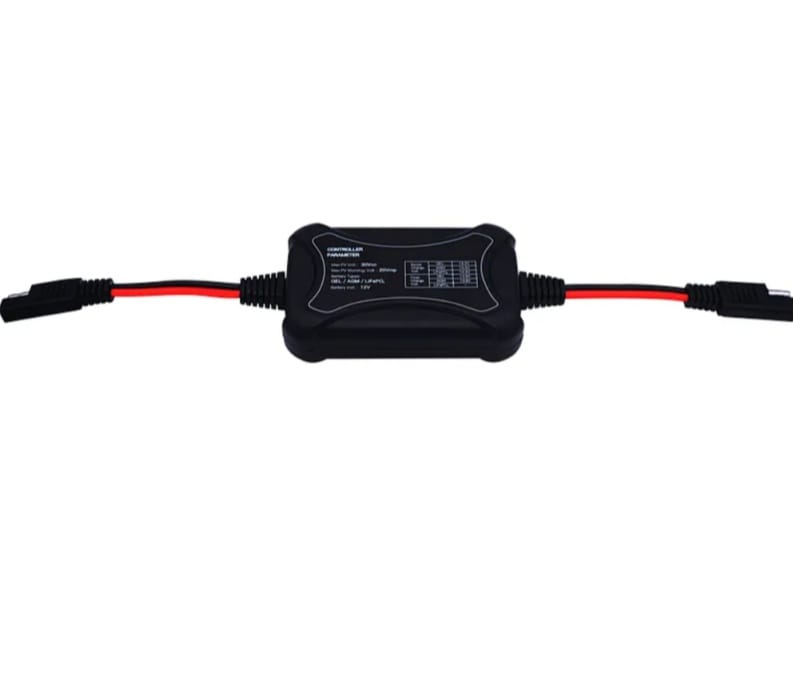

Back view of 10A MPPT solar charge controller
m1210p 10A MPPT solar charge controller for 12V battery systems
Back housing design of 10A MPPT solar charge controller
Connection of 10A MPPT solar charger controller for solar panel and battery

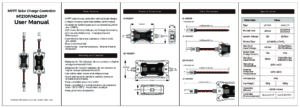

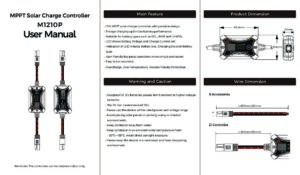

Download Manuals

Mini MPPT Solar Charge Controller (M-Series 10A / 20A)

Designed for Portable Solar Kits & RV Applications.

System Compatibility:

    • 10A Model: 12V System (Max PV < 30V). Best for single panel setups.
    • 20A Model: 12V/24V Auto (Max PV < 60V). Supports series connection.
  • True MPPT Technology: No tracking limit. Up to 99% tracking efficiency.
  • Battery Friendly: Pre-set for Lithium, Gel, and Lead-Acid batteries.
  • Quick Plug Design: Plug & Play with Helios-NE Flexible Panels (Customizable: Anderson/SAE/MC4).
Get Bulk Quote

Recommended System Pairing(MPPT Version)

Experience the Peak of Solar Efficiency

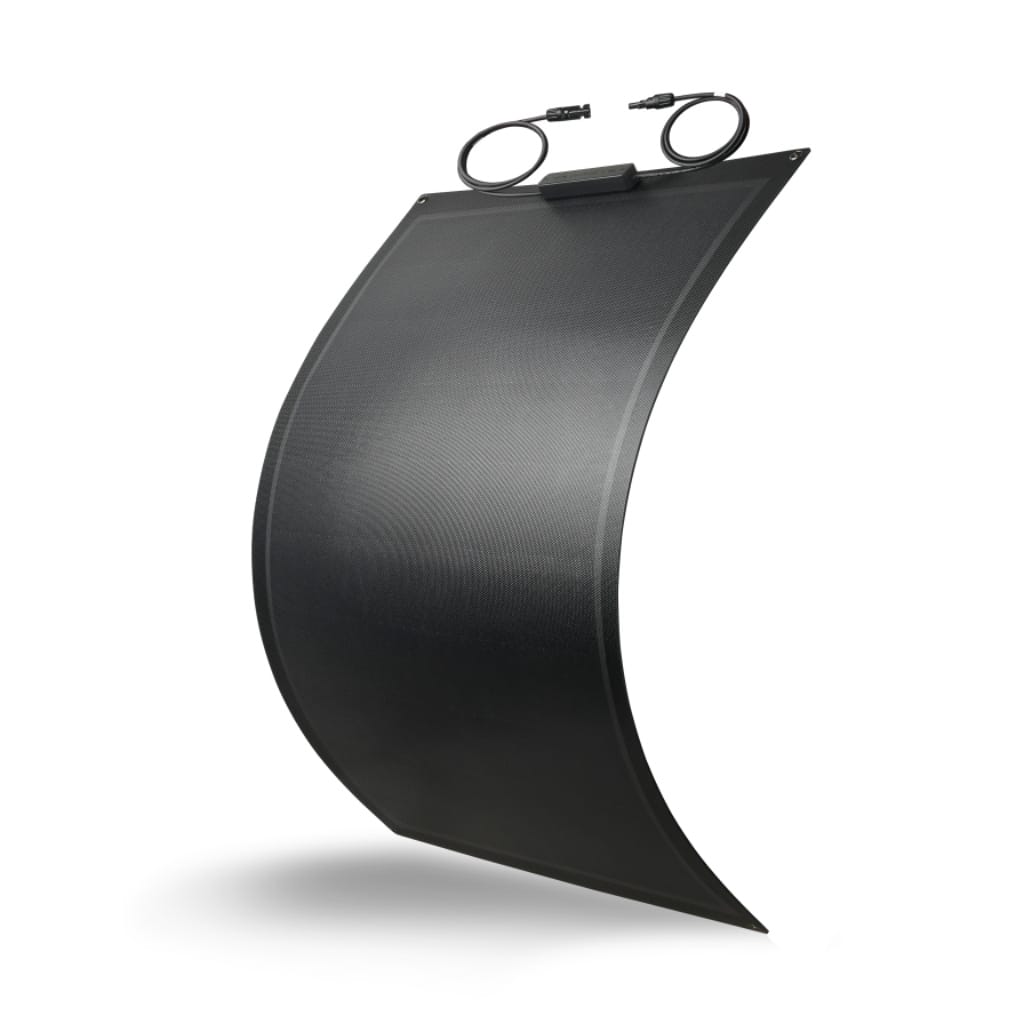

Demonstration of the Sola-E USF-110H flexible solar panel's durability and ability to bend for RV or marine installation.

Best Match: 110W HPBC Flexible Solar Panel

Why? Pair the 99% Tracking Efficiency of this MPPT controller with our latest HPBC (High Performance Back Contact) technology. While the MPPT squeezes every watt from the sun, the busbar-free HPBC panel delivers higher conversion rates (23%+) and superior performance in partial shade.
Result: Maximum power density, fastest charging speed, and a sleek all-black aesthetic.

Click to learn more

Feature Highlights

m1210p 10A MPPT solar charge controller for 12V battery systems

Visual LCD Display & LED Indicators

Monitor your system status instantly. The built-in LCD screen combined with LED indicators clearly displays battery voltage and charging status. Designed with a Quick Plug interface for a true Plug & Play experience—no complex wiring required.

Back housing design of 10A MPPT solar charge controller

Compact Design for Portable Systems

Engineered specifically for small size solar portable charge systems. Its small size and lightweight build make it the perfect match for portable solar kits. We also accept customizing cables and connectors to fit your specific battery setup.

Wiring Diagram

Connection of 10A MPPT solar charger controller for solar panel and battery
  • Step 1: Connect Controller to Battery. (Screen turns on).
  • Step 2: Connect Controller to Solar Panel. (Charging icon flashes).
  • Step 3: Connect DC Load (Light bulb/Fan).
  • IMPORTANT: Always connect the Battery FIRST, then the Solar Panel. Disconnect in reverse order.

Detailed Specs for mppt solar charge controller

Feature10A Model (M1210P)20A Model (M2420P)
System Voltage12V Only12V / 24V Auto
Max PV Input Voltage< 30V (Voc) ⚠️12V: < 30V (Voc)
24V: < 60V (Voc)
Max Charge Current10A20A
Max PV Input Power150W (12V)300W (12V) / 600W (24V)
Waterproof RatingIP32 (Indoor/Dry Use)IP32 (Indoor/Dry Use)
DisplayLCD Screen + LEDLCD Screen + LED
Dimensions96.4*61.6*27mm149.9*80*35.3mm

Build Your Solar System

Not sure if this controller matches your battery bank? Fill out the form below. Our engineers will check the compatibility for you.
Free System Design Service Included


Please use your company email if available
Let us know if you have any specific requirements or questions.

Common Questions & Technical Advice

Read this before connecting your system

Q1: How do I choose between the 10A (M1210P) and 20A (M2420P) models?

A: It depends on the total wattage of your solar panels:

  • Choose 10A (M1210P): If your total solar power is under 130W (e.g., one 100W Flexible Panel). This model is for 12V systems only.
  • Choose 20A (M2420P): If your system is larger (up to 260W for 12V or 520W for 24V). This model supports series connection.

A: ⚠️ Be Careful.

  • The 20A Model supports series connection up to 60V.
  • The 10A Model is strictly for Parallel Connection (12V panels) with a max input of 30V. Connecting panels in series to the 10A model will damage the unit.

A: Yes! Both M-Series models are pre-programmed to support Lithium (LiFePO4), Gel, Sealed (AGM), and Flooded lead-acid batteries. You can easily select your battery type through the LCD menu.

A: Absolutely. As an OEM manufacturer, Helios-NE can customize the input/output cables with Anderson, SAE, MC4, or DC5521 connectors to perfectly match your portable power station or battery bank. (MOQ applies).

A: The M-Series is rated IP32. It is splash-resistant but not fully waterproof. We recommend installing it indoors (RV/Boat cabin) or keeping it inside the zippered pocket of your foldable solar panel kit.

You May Also Like

Portable 100W Foldable Solar Panel Charger for Marine Yacht and RV, high efficiency ETFE material.

100W Foldable Panel (UT-100)

23% Efficiency | 3.9kg | PERC

Front view of the Sola-E HPBC Flexible Solar Panel USF-110H, 110W model, showing the 25% high-efficiency cells.

110W Flexible Panel (USF-110)

25% Efficiency | 2.3kg | HPBC

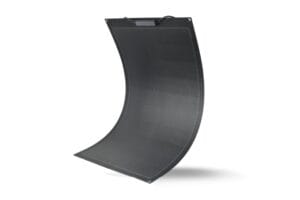

Sola-E anti-micro-crack flexible solar panel for RV, Marine, and Balcony installations.
