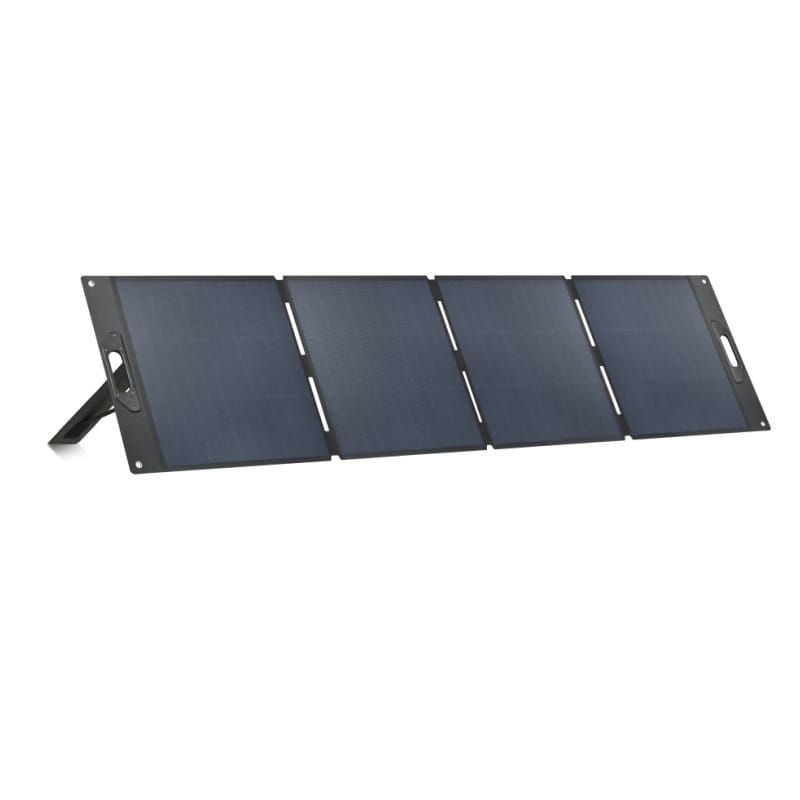

The UT-220H 4-panel foldable solar charger unfolded and standing on its integrated kickstands, showing the dark grid texture of the photovoltaic cells.

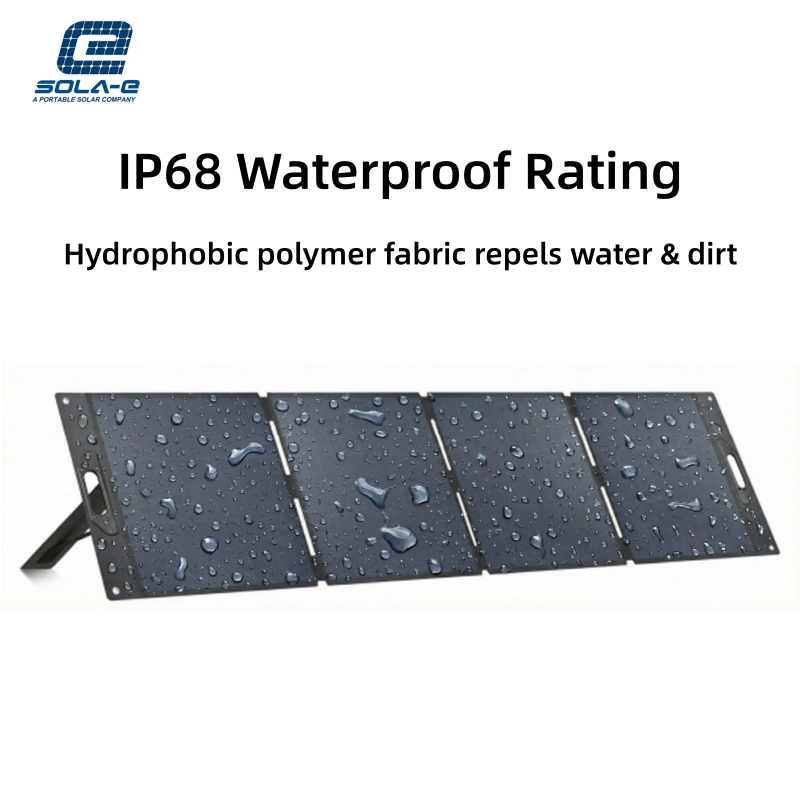

A four-panel foldable solar charger is shown unfolded and supported by its kickstand against a plain white background. The dark blue surface of the solar panels and the surrounding black frame are covered with numerous clear water droplets, demonstrating its water-resistant properties. Handles and metal grommets are visible on the edges of the panels.

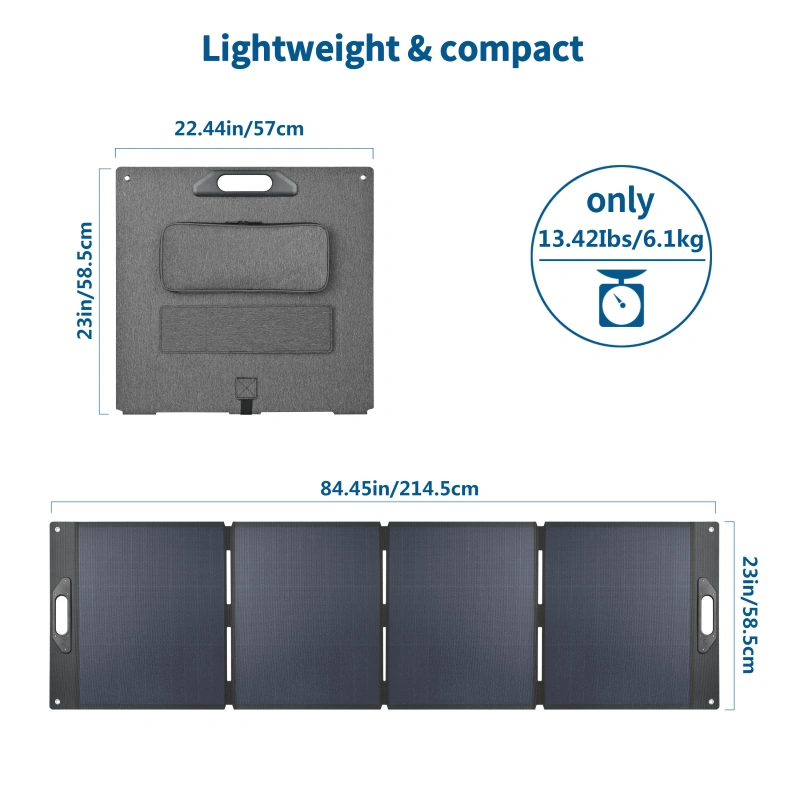

Product overview of the UT-220H solar charger, displaying the unit folded, the back kickstands, the carrying case, and the dimension of the full unfolded setup.
Composite view of the UT-220H 220W foldable solar panel fully unfolded. The top section shows the front with four monocrystalline solar cells, while the bottom section displays the rear side with adjustable kickstands and durable fabric casing.
Front and back angles of the UT-220H solar panel folded for portability. The image displays the compact briefcase-style design with a sturdy rubber handle, showing the storage pocket side and the sleek fabric reverse side.

220W HPBC Premium Portable Solar Panel (UT-220H)

Enter the elite tier of solar technology. The UT-220H combines High-Efficiency HPBC Cells (25%) with a sleek, busbar-free aesthetic.
  • HPBC Tech (25%): Next-gen "No-Busbar" cells maximize light absorption and low-light performance.
  • IP68 Waterproof: Hydrophobic polymer fabric repels water and dirt (Lotus Effect).
  • Full-Black Aesthetic: Premium solid black surface with no visible metal grid lines.
  • Ultra-Light (6.1kg): Weighs only 6.1kg—significantly lighter than standard 200W panels (7kg+).
  • 11.9A High Output: 18.5V / 11.9A output optimized for fast charging huge power stations.
Request a Quote (Premium Series)

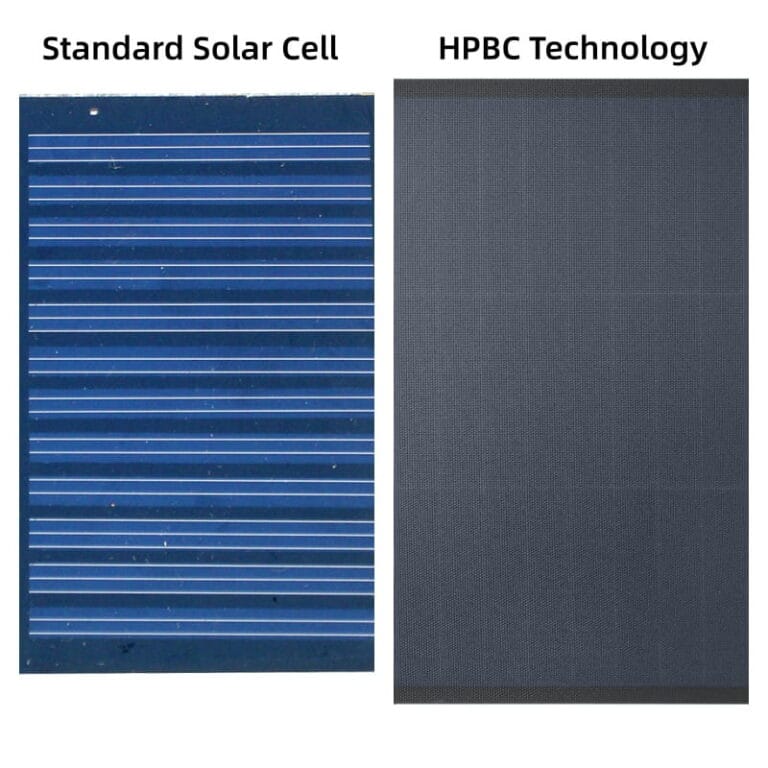

Split-screen macro comparison of solar cell technologies. The left side shows a standard solar cell with visible silver busbars and a blue textured surface. The right side shows a new HPBC solar cell featuring a solid deep black, seamless premium finish with absolutely no visible grid lines.

Why HPBC?
The "No-Busbar" Revolution.

Traditional panels block sunlight with metal grid lines.

Our HPBC (Hybrid Passivated Back Contact) technology moves all electrical contacts to the back, leaving a 100% unobstructed surface to capture every photon.

The result? Higher efficiency (25%) and a stunning, pure black look.

A four-panel foldable solar charger is shown unfolded and supported by its kickstand against a plain white background. The dark blue surface of the solar panels and the surrounding black frame are covered with numerous clear water droplets, demonstrating its water-resistant properties. Handles and metal grommets are visible on the edges of the panels.

IP68 Waterproof & Stain-Resistant

We reinvented the fabric solar panel.

The UT-220H features a specialized high-density textured fabric (Chenille style) that is treated with a hydrophobic coating.

It creates a “Lotus Effect”—water beads up and rolls off, taking dirt with it. It offers the luxury feel of fabric with the rugged durability of industrial plastic.



Key Features

11.9A High-Current Output

Designed for speed. With an operating current of 11.9A and voltage of 18.5V, the UT-220H pushes the limits of portable charging. It fills up 1000Wh+ solar generators faster than standard 10A panels. Note: For maximum efficiency, we recommend using the XT60 or Anderson connectors.

Only 6.1kg – Travel Lighter

Thanks to advanced composite materials and high-density cells, we shaved off over 1kg compared to traditional panels. At just 6.1kg, it is effortless to carry with one hand, making it the ultimate choice for hiking, RVing, and mobile workstations.

25% High-Efficiency

Powered by next-gen HPBC (Hybrid Passivated Back Contact) technology, the UT-220H eliminates front metal grid lines to achieve 100% light absorption surface. With an industry-leading efficiency of $\ge$25%, it delivers higher energy yield than PERC panels, especially in low-light conditions like cloudy days, dawn, or dusk.

ut-220h vs traditional Comparison Table

FeatureSola-E UT-220W (HPBC Pro)Standard 220W Panel (Traditional)
Cell TechnologyHPBC (No Busbars)PERC (Visible Grid Lines)
Efficiency25.00%22% - 23%
Net Weight6.1 kg7.0 kg - 9.0 kg
Waterproof RatingIP68 (Hydrophobic)IP65 (Splash Proof)
Surface LookPremium Full BlackBlue/Black with Lines
Output Current11.9A (Fast Charge)9A - 10A

Wide Applications

Technical details of the UT-220H solar panel, featuring folded and unfolded dimensions on the left and a close-up of the MC4 and adapter cables in the storage pocket on the right.

Seamless Connectivity

Direct plug-and-play for 99% of solar generators on the market.

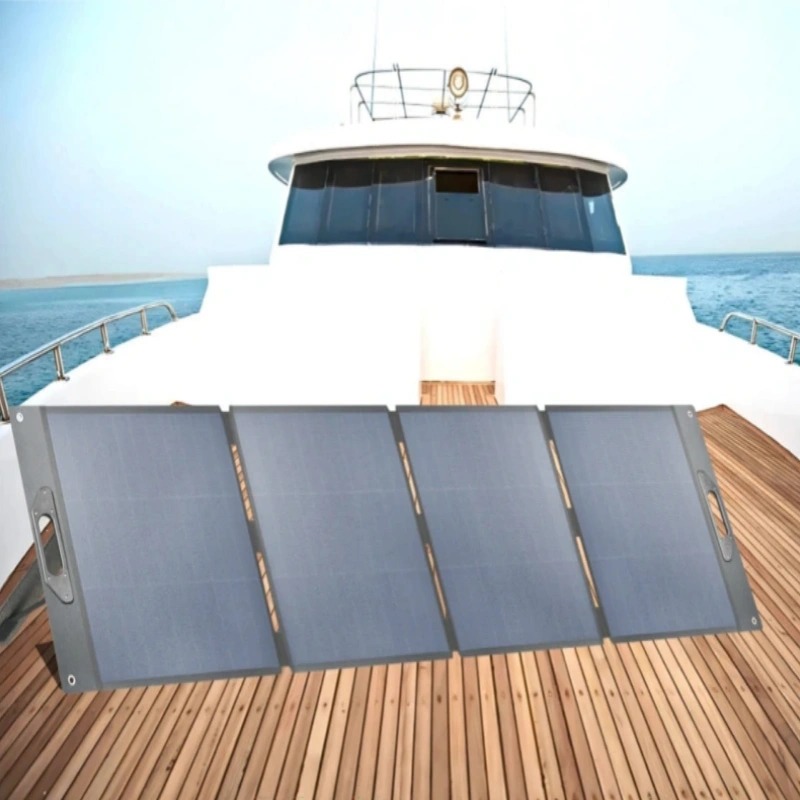

UT-220W marine solar panel installed on a yacht stern rail, generating clean power at sea.

Elite Off-Grid Power

Combining IP68 waterproof durability with sleek all-black aesthetics, it is the ultimate upgrade for your RV and glamping adventures.

Sola-E solar panel manufacturing facility in Dongguan, China

Custom OEM/ ODM Projects

Turning your unique concepts into reality with professional OEM/ODM solutions.

Techniche Specifications

ParameterSpecification
ModelUT-220H
Peak Power (Pmax)220W
Cell TechnologyHPBC (Hybrid Passivated Back Contact)
Cell Efficiency25%
Waterproof RatingIP68
Output Voltage (Vmp)18.5V
Output Current (Imp)11.9A
Open Circuit Voltage (Voc)23V (Approx)
Surface MaterialHydrophobic Polymer Fabric (Chenille Texture)
Connector KitMC4 / SAE / Anderson / XT60 / DC5521
Unfolded Dimensions2145 x 585 x 25 mm
Folded Dimensions585 x 570 x 55 mm
Net Weight6.1 kg
Warranty1 Years

Packaging & Shipping​​

Palletized solar panel shipment ready for container loading, demonstrating Sola-E's professional logistics and export capability.
Secure packaging for the Sola-E 400W foldable solar panel, designed to ensure safe shipping and protection during transport.
  • Heavy-Duty Packaging: Double-wall corrugated box with foam corner protection.
  • Secure Palletization: Standardized pallets with strapping for safe bulk transport.
  • Optimized Loading: Maximized container space efficiency for lower shipping costs.
  • Professional container handling for international export.

Request Bulk Quotation

OEM support · Fast response · Factory direct pricing

Please use your company email address
e.g. 100 pcs / 500 pcs / 1,000+ pcs

FAQ (Frequently Asked Questions)

Q1: Is the fabric difficult to clean if it gets muddy?

A: Not at all. The fabric is treated with a hydrophobic coating (IP68 rated). Mud and water bead up on the surface and can be easily rinsed off or wiped away, keeping the panel looking premium.

A: We recommend using the XT60 or Anderson connectors for full 11.9A output. The standard DC5521 port is best for lower-power devices, as it may heat up under prolonged high-current (11A+) load.

A: HPBC cells have no metal lines on the front, meaning 100% of the surface area absorbs sunlight. This makes them more efficient (25% vs 23%) and aesthetically superior (Solid Black) compared to PERC panels.
