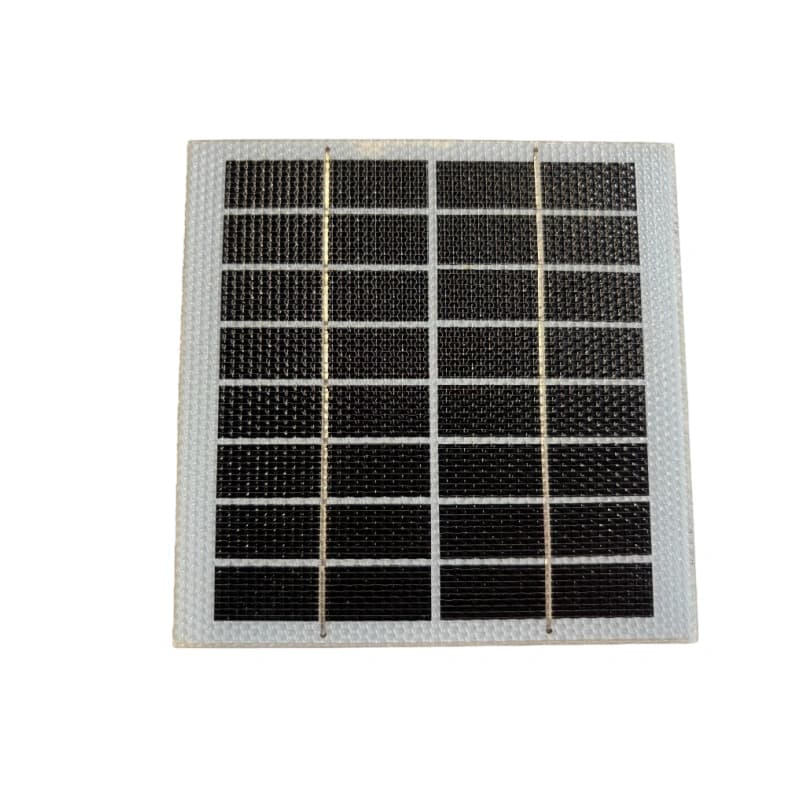

ETFE Mini Solar Panels for Industrial IoT & Marine
IP67 Waterproof | 5+ Years Lifespan | Non-Yellowing
The choice for mission-critical devices.
- Non-Yellowing: ETFE film withstands high UV exposure without degradation (unlike Epoxy).

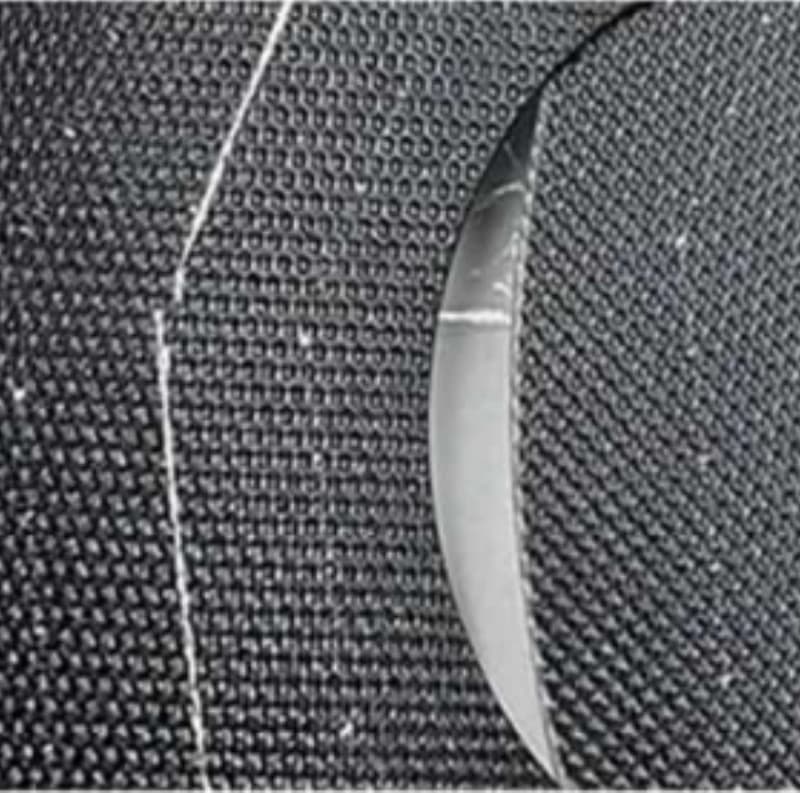

- Self-Cleaning Texture: Unique honeycomb surface reduces dust accumulation and light reflection.
- Rigid Structure: Built on high-strength FR4 PCB (not flexible plastic) to prevent cell micro-cracks during installation.
- Marine Ready: Corrosion-resistant materials suitable for saline environments (with optional edge sealing).
- IP67: Completely sealed against salt mist and humidity. Non-stick surface washes clean with rain.
Engineered for the Toughest Deployments
The "5-Year" Reliability
Our ETFE modules utilize high-temperature vacuum lamination. The ETFE fluorine polymer surface creates a robust shield against salt mist, extreme heat (-40°C to +85°C), and chemical corrosion.
Superior Light Capture
The honeycomb texture traps low-angle light to boost efficiency, while its non-stick surface allows rain to wash away dirt, ensuring consistent output without maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | Industrial ETFE Rigid Series |
| Coating Material | ETFE (Ethylene Tetrafluoroethylene) - Matte Finish |
| Backing Material | FR4 Fiberglass (Rigid PCB Type) |
| Cell Technology | High-Efficiency Mono PERC/Sunpower/IBC |
| Cell Efficiency | 21% - 23% |
| Output Voltage | Custom: 2V / 5V / 6V / 9V / 12V / 18V |
| Waterproof Rating | IP67 Compatible (Requires optional edge sealing/potting) |
| Operating Temp | -40°C to +85°C |
| UV Resistance | Excellent (5-7 Years) |
Powering the Internet of Things (IoT)
Smart City Infrastructure
5+ year lifespan reduces the maintenance cost of replacing degraded panels.

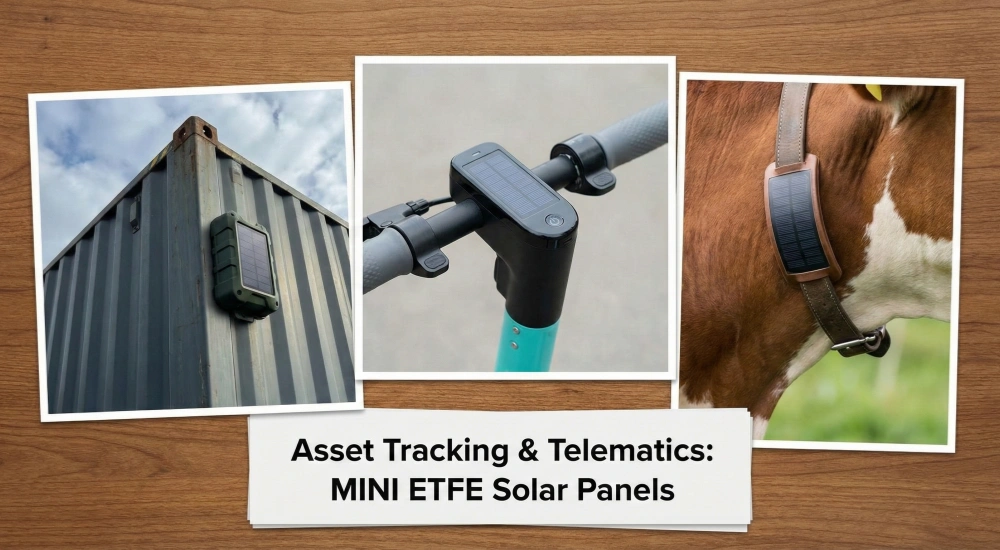

Asset Tracking & Telematics
Impact resistance and scratch resistance during rough handling.

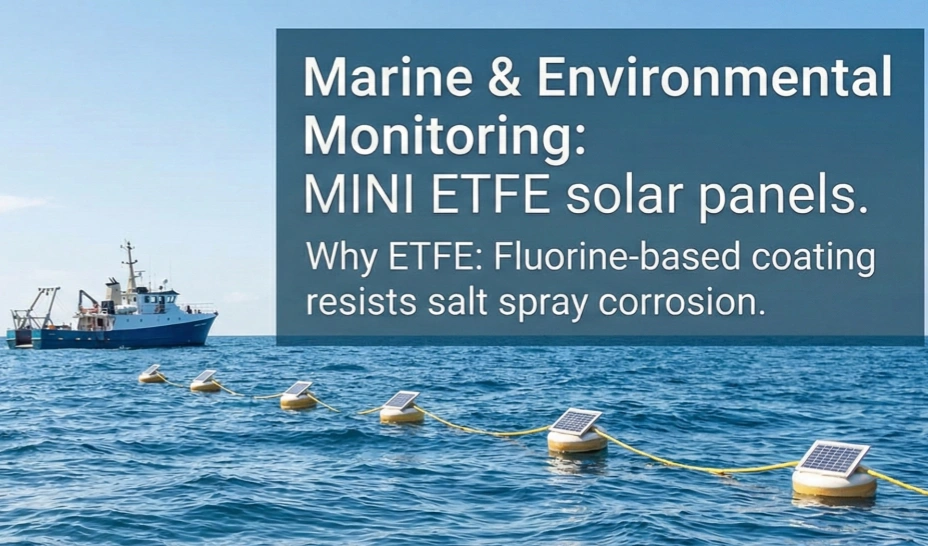

Marine Monitoring
The fluorine-based coating resists salt spray corrosion naturally.
Common Applications
ETFE mini solar panels are widely used in GPS trackers, wireless security cameras, marine buoys and navigation lights, environmental monitoring stations, smart agriculture sensors, electric fence energizers, traffic warning lights, and asset-tracking devices — anywhere a device needs years of maintenance-free outdoor power.
Start Your Marine-Grade Solar Project
From prototype to mass production. We sign NDA to protect your design.
Backed by our ISO 9001 factory with 7-day prototyping, and direct engineer support.
FAQ (Frequently Asked Questions)
Q1: Are these ETFE panels flexible?
Q2: What does "Marine Grade" mean for these panels?
A: It’s a two-layer system. The ETFE front surface resists salt mist, UV and humidity, while the POE encapsulation underneath blocks moisture from reaching the cells — which is why these panels are used on buoys, navigation equipment and coastal sensors. For applications involving full submersion or direct wave impact, we add Edge Sealing or Full Potting to protect the FR4 substrate as well. Tell us your deployment environment and we’ll configure the right protection level.
Q3: What type of solar cells do you use?
A: We offer two cell options depending on your priorities. Monocrystalline PERC (21–23% efficiency) delivers reliable output at a competitive price point — the standard choice for most projects. IBC back-contact cells (including SunPower) reach higher efficiency, so you get maximum power from the same panel size, plus a cleaner all-black appearance with no visible busbars — ideal for premium consumer products where both output and looks matter. Tell us your target power and size, and we’ll recommend the right cell type.
Q4: What is the warranty for ETFE mini solar panels?
A: All mini solar panels carry a 1-year manufacturer warranty against defects in materials and workmanship. Note that warranty and lifespan are different things: ETFE panels are engineered for 5+ years of outdoor service — the 1-year warranty covers manufacturing defects, while the ETFE lamination is what protects your long-term performance.
Q5: What is your minimum order quantity (MOQ)?
A: For custom mini solar panels, MOQ starts at 100 pcs — and unit cost drops significantly at 500+ and 1,000+ pcs, since tooling and setup are spread across the batch. For prototyping, we offer sample orders (typically 5–20 pcs) so you can validate the design before committing to production. Annual-volume programs get the best pricing — tell us your projected quantity and we’ll quote accordingly.
